2022 New Design TRD10PRO Infrared Digital Night Vision Optical Riflescope Gun Sight Scope 6X Zoom Tactical Night Vision Device for Hunting Shotting

Basic Parameter:

model: TRD10PRO
sensor: 1/3”CMOS Sensor 1.2M pixel 1288X968
Display screen: 1.6inch 640X480HD IPS
Optical parameters: Objective lens aperture
20mm，F1.1
Magnification: 3.5X
Field of view: 7.4°×5.5°
Standard video resolution:1280X720P/30fps
Video format: MP4
Segmented video time: 1 minutes/3 minutes/5 minutes/10 minutes
Loop video : support
Slideshow: support
Memory Card: 16GB
boot time: ＜ 3s

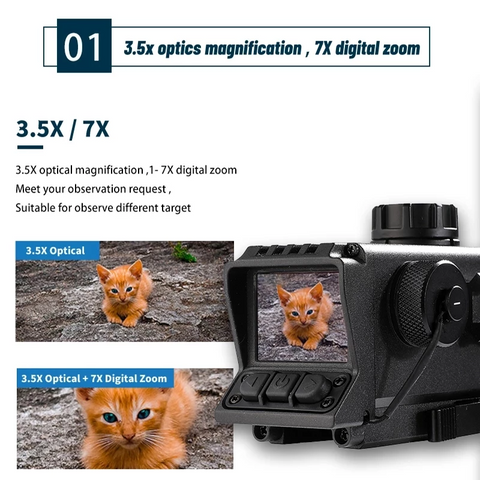

Digital zoom: support digital continuous zoom, up to 8X
Video recording: support
Screen brightness adjustment: support

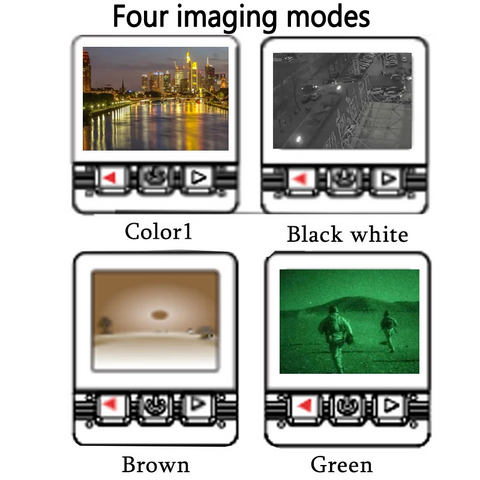

Image color: support four image colors

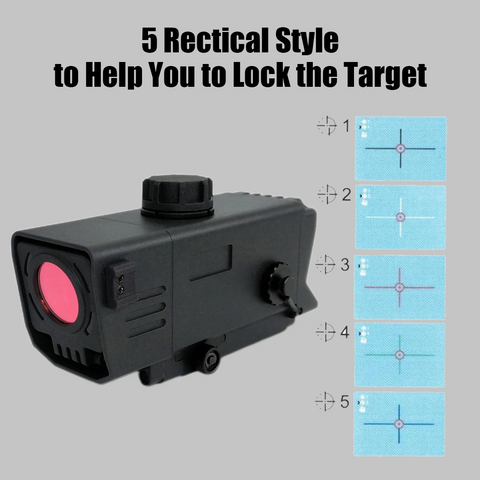

Reticle selection: support 5 kinds of reticle
Center calibration of reticle: support
time setting
support language:
Six languages including Chinese and English
Battery: 16340/18350 Rechargeable Lithium Battery(3.7V)
Power Adapter: 5V/2A
Charging time: ＜ 180 minutes
Charging status indicator： support
Battery life：≥3hour
Battery indicator：support
Battery reminder： support
Shutdown timer：support
Data interface：Mini USB2.0 (charging/PC data connection)
Adjustment range：1/42MOA
Windage movement range：60 MOA
Elevation movement range：80 MOA
Environmental adaptability：Operating temperature：-25℃～55℃
Storage temperature：-55℃～70℃
Impact resistance：>=600G
waterproof level：IP67

Specification:

✔The TRD10 Pro night vision scope is a rugged, reliable red dot sight that is at home in a variety of shooting applications. It allows the shooter to operate between 5 dot colors and 7 brightness settings to easily adjust for changing conditions.

✔Fully multi-coated lenses provide a clean and bright, unobscured point of view. Unlimited eye relief allows for rapid target acquisition. Max Elevation Adjustment- 24Mil / 60MOA. Max Windage Adjustment- 32Mil / 80MOA.

✔The single-piece chasis is compact and lightweight but still delivers shockproof performance withstanding both recoil and impact. Nitrogen purging and o-ring seals ensure fogproof and waterproof performance.

✔High resolution TRD10PRO is based on the latest optoelectronic technology research and development of new products. The night vision sight scope adopts the high-performance generation II/III image intensifier, with excellent performance, small szie, lightweight, clear imaging, easy operation, and high cost-effective.

✔The TRD10PRO tactical night vision scope has strong practicability and can be applied to military observation, coastal defense reconnaissance, public security surveillance, forensics, customs anti-smuggling, etc. in no illumination environment at night.

✔Easy to connect to the scope.

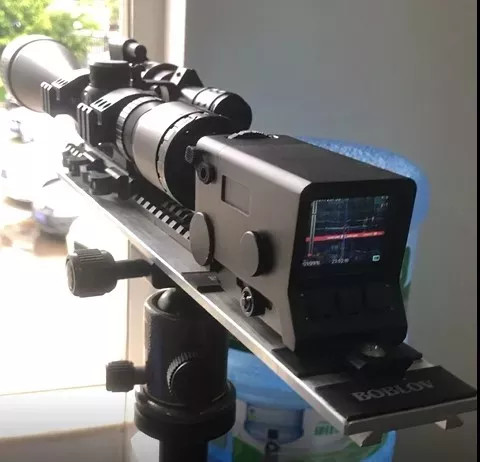

This is also a lightweight digital night vision scope attachment, which allows you to quickly and easily convert the day scope into an advanced night vision scope, which can be used for close and long-range hunting during the day or night.

Features:

◆ This product integrates the digital zoom function: instantly shorten the distance with the shooting target;

◆ Video recording function: record every wonderful moment and share it with many people;

◆ A variety of reticle: close-range, medium-distance, reticle for various usage scenarios;

◆ A variety of reticle and colors: the type and color of the reticle can be selected according to personal preference and use environment;

◆BDC (Ballistic Assist Function): Quickly assist aiming, according to the measured target distance, operate the button, the system will automatically prompt the appropriate center assist aiming position; the upper right corner shows: give the calibration value for reference calibration;

◆Ranging: Turn on/off the ranging caliper, take the target with a height of 1.7 m as the reference object, and measure the distance from bottom to top according to the image of the target in the display screen;

◆Mil/MOA switch: It can be switched according to the habits of users in different countries;

◆Convenient calibration: After the first shot, move the center point of the reticle to coincide with the impact point to complete the calibration;

◆ Multi-language: built-in 7 languages, you can choose by yourself;

◆ Specifically designed for rifle and shotgun shooting: it can be mounted directly to a Picainny rail, also known as a fishbone, also known as a MIL-STD-1913 rail or STANAG 2324 rail, the night vision Aiming is IP67 waterproof grade;

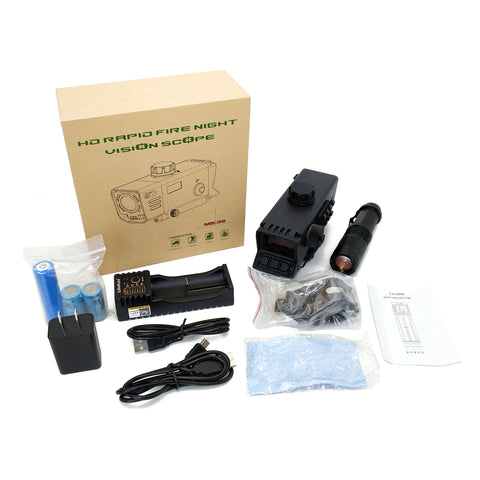

Packaing Information

TRD10pro digital night vision riflescope
USB cable
Color box
Portable soft case
External power adapter
Separate battery charger
User's manual( Electronic Manual)
Infrared flashlight
16340 and 18350 lithium battery

As the original manufacture of this device, we accpet OEM/ODM

-Customize your own brand/logo
-Customize your favorite color
-Customize special design(outward, details, etc.)
-Customize your own package style
-Customize your own accessories
